Guide to Keyboard, Video and Audio connectors

DVI

DVI-I Single Link

DVI-I Single Link Connector

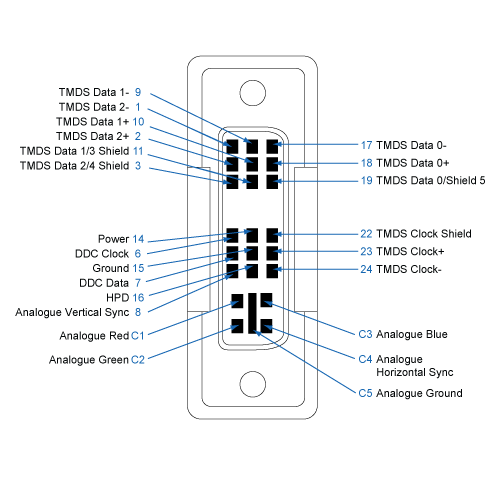

See pinning diagram

DVI-I Dual Link

DVI-I Dual Link Connector

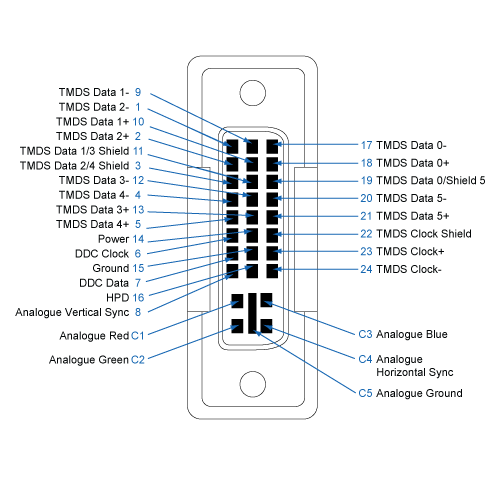

See pinning diagram

DVI-D Single Link

DVI-D Single Link Connector

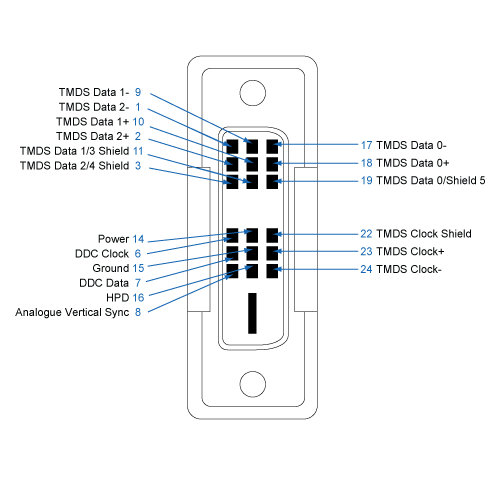

See pinning diagram

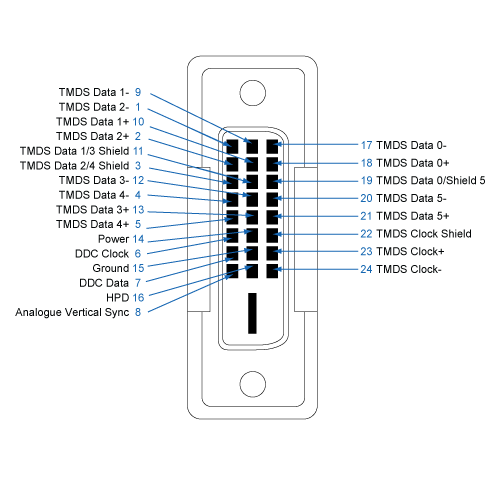

DVI-D Dual Link

DVI-D Dual Link Connector
See pinning diagram

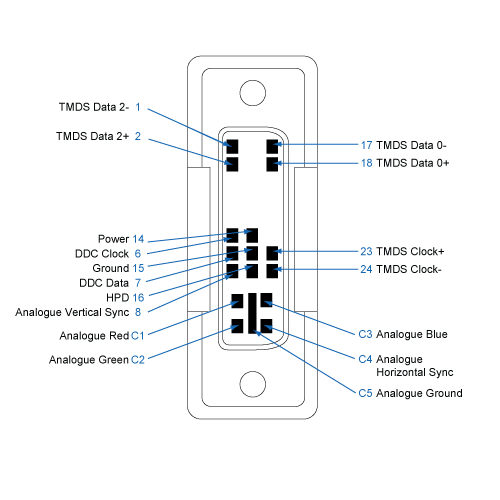

DVI-A

DVI-A Connector
See pinning diagram

DisplayPort

DisplayPort

DisplayPort Connector

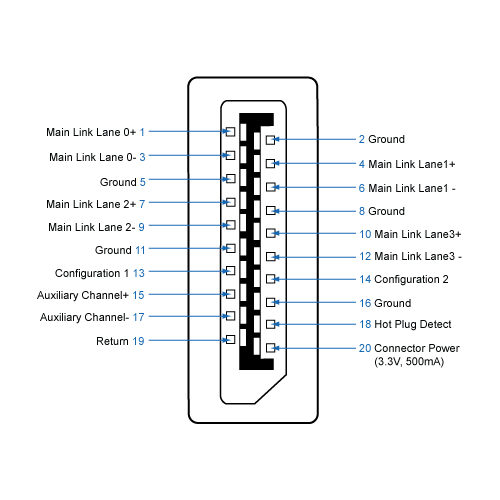

See pinning diagram

Mini DisplayPort

Mini DisplayPort Connector

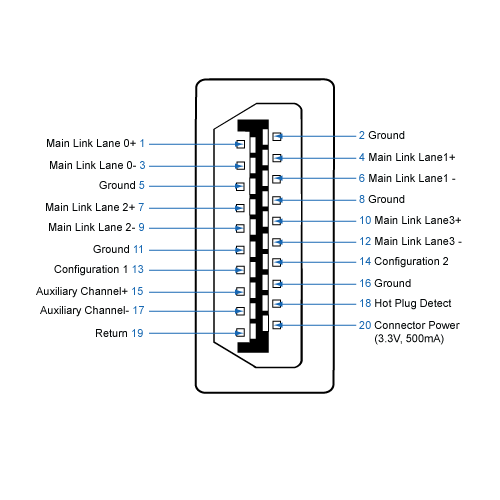

See pinning diagram

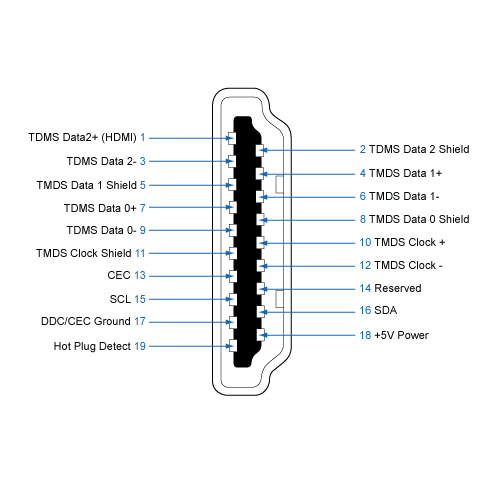

HDMI

HDMI

HDMI Interface
See pinning diagram

Micro HDMI

Mini HDMI Interface

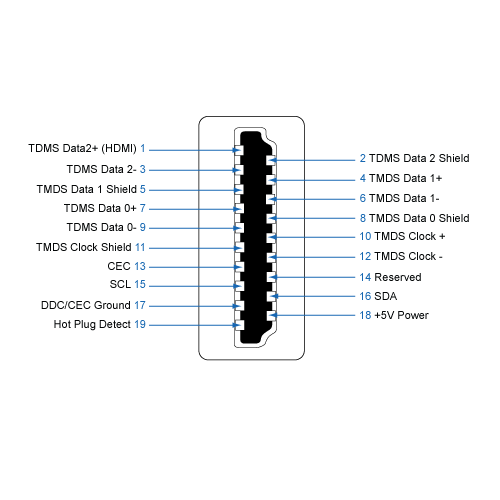

See pinning diagram

Miscellaneous

VGA (HD15)

VGA Interface

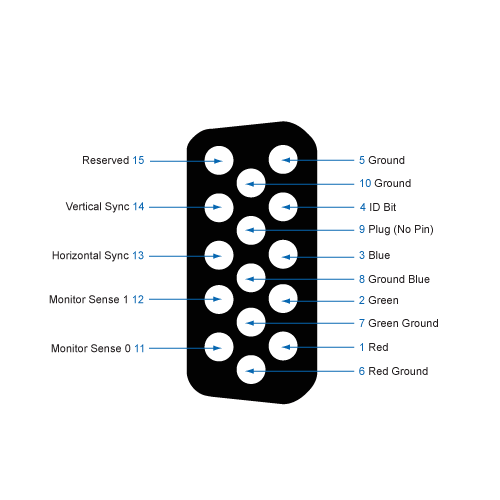

See pinning diagram

S-Video

S-Video Interface

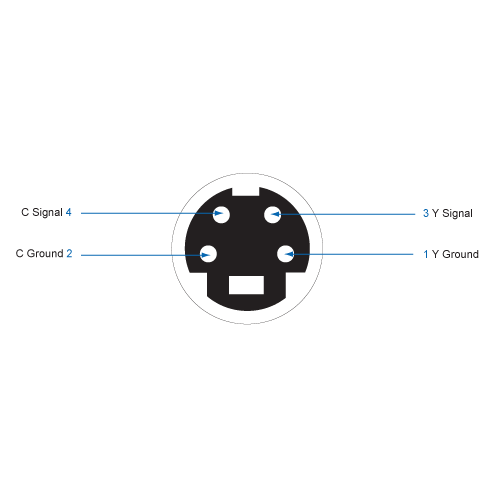

See pinning diagram

TOSLINK

TOSLINK Interface

RCA

RCA Interface

BNC

BNC

F-Type Coax

F-Type Coax
