Store home > KVM > Enterprise KVM Switches > Emerald® KVM over IP Matrix Switch, 10GbE, 12-Port
EMS10G12: KVM over IP, 10G, (12) SFP+ 1/10G + (3) QSFP28 100G
Photo may vary from actual product
EMS10G12: KVM over IP, 10G, (12) SFP+ 1/10G + (3) QSFP28 100G
EMS10G12: KVM over IP, 10G, (12) SFP+ 1/10G + (3) QSFP28 100G
EMS10G12: KVM over IP, 10G, (12) SFP+ 1/10G + (3) QSFP28 100G
EMS10G12: KVM over IP, 10G, (12) SFP+ 1/10G + (3) QSFP28 100G

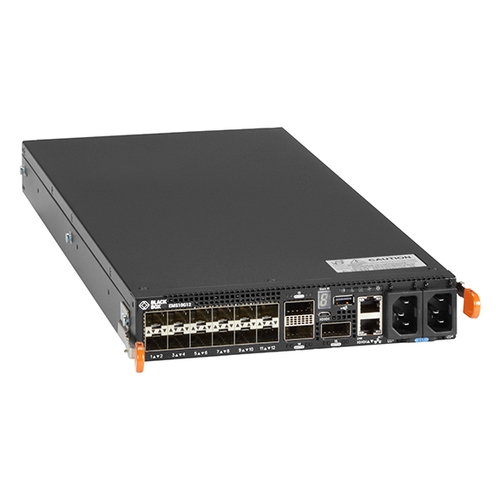

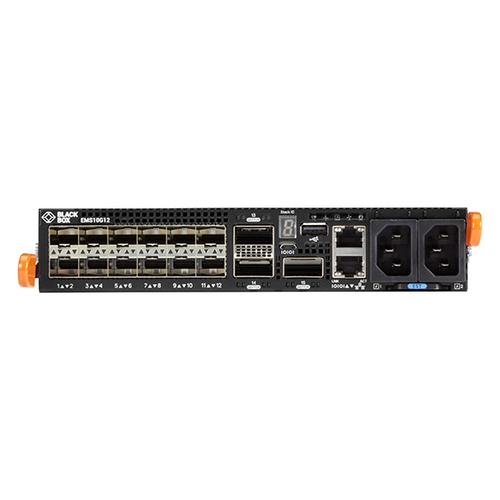

Emerald® KVM over IP Matrix Switch, 10GbE, 12-Port

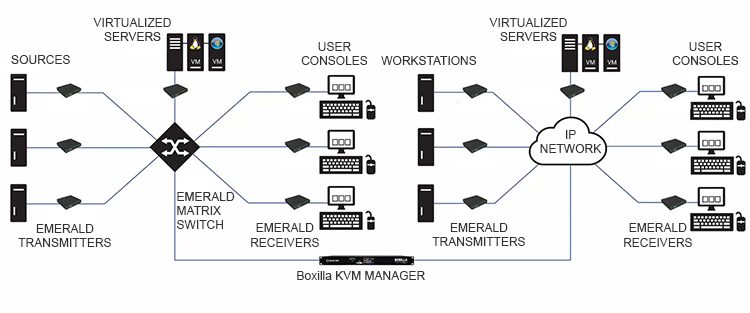

Part of the Emerald 4K/2K KVM extension and matrix switching solution that simplifies access to both physical and virtual servers.


  • 1RU high-density 10-Gigabit switch
  • 960-Gbps (full-duplex) non-blocking, cut-through switching fabric delivers line rate performance under a full load

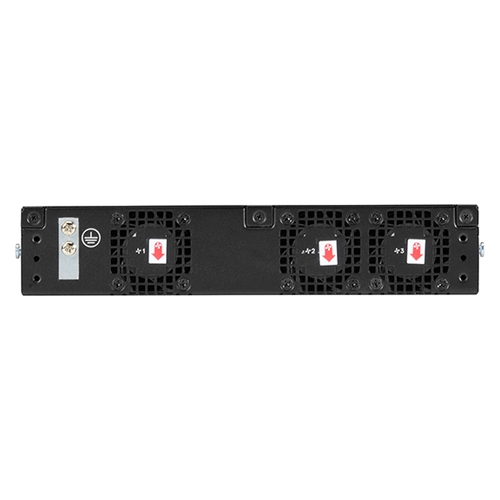

  • Redundant, hot-swappable power supplies and fans
  • Supports 10GBASE fiber optics
  • VXLAN gateway support for bridging and routing non-virtualized and virtualized overlay networks with line-rate performance
  • Scalable L2 and L3 Ethernet Switching with QoS, ACL
  • Full complement of standards based IPv4 and IPv6 features including OSPF, BGP and PBR

  Product       Code
KVM over IP
10G

(12) SFP+ 1/10G + (3) QSFP28 100G
  10G Emerald KVM over IP Matrix Switch
10G Emerald KVM over IP Matrix Switch
  EMS10G12
Please contact our Sales department.

Accessories

  Product     Code

  SFP+, 10-Gbps - LC, MM 850nm, 300m
SFP+, 10-Gbps
  LSP441
  SFP+, 10-Gbps - LC, Single-mode 1310nm, 20km
SFP+, 10-Gbps
  LSP442
  SFP+ 10-Gbps Direct Attach Cable (DAC) - Cisco SFP-H10GB-CUxxM Compatible - 0.5m
SFP+ 10-Gbps Direct Attach Cable (DAC) - Cisco SFP-H10GB-CUxxM Compatible
  SFP-H10GB-CU50CM-BB
  SFP+ 10-Gbps Direct Attach Cable (DAC) - Cisco SFP-H10GB-CUxxM Compatible - 1m
SFP+ 10-Gbps Direct Attach Cable (DAC) - Cisco SFP-H10GB-CUxxM Compatible
  SFP-H10GB-CU1M-BB
  QSFP28 100Gbps Active Optical Cable (AOC) – Cisco SFP-100G-AOCxM Compatible - 3m
QSFP28 100Gbps Active Optical Cable (AOC) – Cisco SFP-100G-AOCxM Compatible
  QSFP-100G-AOC3M-BB
  SFP+ 10Gbps Active Optical Cable (AOC) – Cisco SFP-10G-AOCxM Compatible - 5m
SFP+ 10Gbps Active Optical Cable (AOC) – Cisco SFP-10G-AOCxM Compatible
  SFP-10G-AOC5M-BB
  SFP+ 10Gbps Active Optical Cable (AOC) – Cisco SFP-10G-AOCxM Compatible - 10m
SFP+ 10Gbps Active Optical Cable (AOC) – Cisco SFP-10G-AOCxM Compatible
  SFP-10G-AOC10M-BB
  QSFP28, 100-Gbps, OM4, MPO - 70m, MPO, OM3
QSFP28, 100-Gbps, OM4, MPO
  QSFP441-R2
  Emerald® SE DVI KVM-over-IP Extender - Single-Head/Dual-Head, V-USB 2.0, Audio, Virtual Machine Access - (1) Single link DVI-D, 4x V-USB 2.0, audio, Transmitter
Emerald® SE DVI KVM-over-IP Extender - Single-Head/Dual-Head, V-USB 2.0, Audio, Virtual Machine Access
  EMD2000SE-T-R2
Rack/Mount Kit
  Rackmount Kit for Emerald 4K (1 or 2 units)
Rackmount Kit for Emerald 4K (1 or 2 units)
  EMD4000-RMK1
  Rackmount Bracket for 1 Emerald® SE Extender Unit
Rackmount Bracket for 1 Emerald® SE Extender Unit
  DTX1000-RMK1
  Rackmount Bracket for 2 Emerald® SE Extender Units
Rackmount Bracket for 2 Emerald® SE Extender Units
  DTX1000-RMK2
  Emerald® SE DVI KVM-over-IP Extender - Single-Head/Dual-Head, V-USB 2.0, Audio, Virtual Machine Access - (1) Single link DVI-D, 4x V-USB 2.0, audio, VM-access, Receiver
Emerald® SE DVI KVM-over-IP Extender - Single-Head/Dual-Head, V-USB 2.0, Audio, Virtual Machine Access
  EMD2000SE-R
  Emerald® SE DVI KVM-over-IP Extender - Single-Head/Dual-Head, V-USB 2.0, Audio, Virtual Machine Access - (2) Single link DVI-D, 4x V-USB 2.0, audio, VM-access, Receiver
Emerald® SE DVI KVM-over-IP Extender - Single-Head/Dual-Head, V-USB 2.0, Audio, Virtual Machine Access
  EMD2002SE-R
  SFP+, 10-Gbps, LC, 850nm, Multi-mode - 850nm MM LC, 300m
SFP+, 10-Gbps, LC, 850nm, Multi-mode
  LSP421
  SFP+, 10-Gbps, LC, 1310nm, Single-mode - 1310nm SM LC, 10km
SFP+, 10-Gbps, LC, 1310nm, Single-mode
  LSP422
  SFP+, 10-Gbps, RJ-45 - 30m, RJ-45, CATx
SFP+, 10-Gbps, RJ-45
  LSP443
  QSFP28, 100-Gbps, WDM Single-mode - 10km, LC Duplex, OS1 WSM
QSFP28, 100-Gbps, WDM Single-mode
  QSFP442
  Emerald® 4K KVM-over-IP Extender - DisplayPort, Single-Head, V-USB 2.0, Audio - (1) DisplayPort 1.2 (4K60), 4x USB transparent, audio, Receiver
Emerald® 4K KVM-over-IP Extender - DisplayPort, Single-Head, V-USB 2.0, Audio
  EMD4000R
  Emerald® 4K KVM-over-IP Extender - DisplayPort, Single-Head, V-USB 2.0, Audio - (1) DisplayPort 1.2 (4K60), 4x USB transparent, audio, Transmitter
Emerald® 4K KVM-over-IP Extender - DisplayPort, Single-Head, V-USB 2.0, Audio
  EMD4000T
  ControlBridge® Touch Panel - 12"
ControlBridge® Touch Panel
  CB-TOUCH12-T
  ControlBridge® Touch Panel - 7"
ControlBridge® Touch Panel
  CB-TOUCH7-T
  Freedom II KM Switch with Glide & Switch Mouse Switching - 4 ports
Freedom II KM Switch with Glide & Switch Mouse Switching
  KV0004A-R2
