Emerald® KVM-over-IP

The Emerald® KVM matrix switching system delivers pixel-perfect HD or 4K video over a dedicated or existing IP network. Extend and switch video (DisplayPort or DVI), transparent USB 2.0 and bi-directional analog audio signals across any combination and number of physical and virtual desktops and servers. Manage your network with Boxilla®.

Speak to an Expert

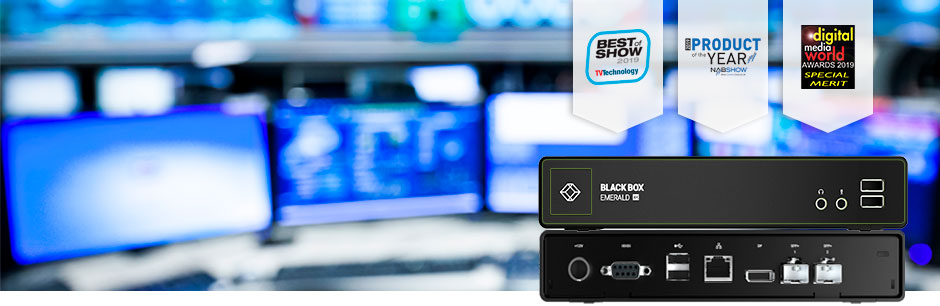

Emerald® 4K KVM Matrix Switching over IP

The award-winning Black Box Emerald KVM-over-IP platform is an infinitely scalable universal access system, enabling users to connect to physical and virtual machines, with anywhere, anytime IP access over an existing IP network, WAN, or the Internet. Advanced security and a market-leading tiny bandwidth consumption streamline user access to local and distributed remote systems.

The Emerald DESKVUE receiver allows users to create a personalized workspace and simultaneously monitor/interact with up to 16 physical, virtual, and cloud-based systems. DESKVUE’s new AV WALL feature set adds a 2x2 video wall to the KVM system, simplifying setup and reducing equipment.

Control and monitor the entire system through Boxilla’s intuitive management dashboard.

Emerald Features & Benefits

Futureproof, scalable Emerald solutions help you build resilient networks with remote access to physical and virtual machines. Using extremely low bandwidth, Emerald delivers secure, pixel-perfect HD and 4K video. True USB emulation means its compatible with your USB devices, and a software-only KVM receiver enables access from your laptop. A Boxilla dashboard provides comprehensive management.

Delivers up to 4K 60 Hz 4-4-4 Video

Futureproof and Scalable KVM

Futureproof and Scalable KVM

Start with HD and add 4K at your own pace with full HD/4K video interoperability. Scale a small point-to-point extension up to an enterprise KVM matrix of unlimited endpoints by adding additional receivers/transmitters.


Network Resilience

Network Resilience

Unique to the Emerald system, there is no single point of failure. Emerald 4K and Emerald PE are configurable with redundant network paths via SFP(+) ports (fiber or copper) for fail-safe operation. Supports complete switchover to a backup control room.

Remote Access to Virtual Machines

Remote Access to Virtual Machines

Enable multiple users to access any number of physical and virtual servers and desktops. Includes support for VMware® and Microsoft®, using PCoIP Ultra, PCoIP, RDP 8.1, and RemoteFX.

Extremely Low Bandwidth Usage

Extremely Low Bandwidth Usage

Emerald enables remote connections using existing IP infrastructure and reduces cost by using less bandwidth.

Highly Secure

Highly Secure

Active Directory and LDAPs enable secure access — all data flow is protected by end-to-end encryption. Extensive penetration testing is part of development. Boxilla® logs all events, provides immediate email alerts, and integrates with secure syslog.

Extends-HD-4K-Digital-Video-Audio

Pixel-perfect 4K and HD Video

Extend and switch HD and 4K/5K video. Adjust compression in five steps up to pixel-perfect image transmission — visualize every pixel at 60 fps with 10-bit color depth.


True USB Emulation

True USB Emulation

Provides true USB emulation, supporting USB HID devices, X-Keys, USB pushbuttons, Wacom® tablets, USB mass storage, and other high-speed USB 2.0 devices.

KVM Software Receiver

KVM Software Receiver

Use the Emerald Remote App to turn any Windows® 10/11 device into a software KVM receiver. Connect to multiple transmitters and virtual machines simultaneously and from anywhere.

Comprehensive Management

Comprehensive Management

Manage and control your KVM system through the Boxilla KVM Manager. Its intuitive command center dashboard gives you the network monitoring tools you need to manage your KVM configuration.


Video Walls

Video Walls

Simplify your configuration and reduce equipment with DESKVUE, our multi-source user station. Emerald®AV WALL is a new feature incorporated into DESKVUE and adds support for a 2 x 2 video wall.


Videos

The Emerald Unified KVM product family consists of several components that work together to deliver pixel-perfect remote access to servers from user workstations located anywhere on the planet. In these videos, learn how Emerald KVM over IP works, virtually visit our R&D facility to see where Emerald was born, discover a novel approach to the KVM user workspace with DESKVUE, and/or turn your laptop into a software-only KVM receiver with Remote App. Learn how to manage everything with Boxilla, APIs, and Lawo VSM.

Solution Diagrams

Emerald supports a variety of applications, including IP-based matrix switching, multi-site deployments, resilient and redundant backup systems, virtual machine connectivity, access via Remote App (a software-only receiver), and connecting 16 sources in a 4K/5K quad-view format. Take a look at these common application diagrams and start planning your Emerald solution today.

Emerald Family Diagram

Network Application

Application diagram: Emerald IP-based KVM matrix switching application.

Emerald DESKVUE

DESKVUE Remote Workspace

Emerald IP-based KVM matrix switching application including DESKVUE and Emerald®AV WALL.

EN_ApplicationDiagram_Control_Room

Multiple Site Application

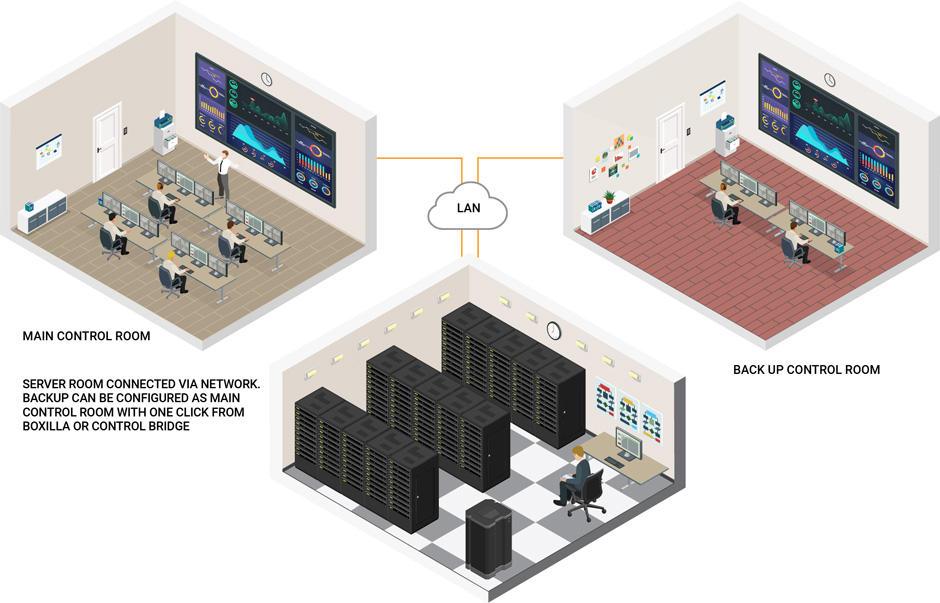

Application diagram: Emerald KVM matrix connecting a control room and a backup site.

en_applicationdiagram_emeraldpe_redundancy_network-fail

Resilient KVM Networks

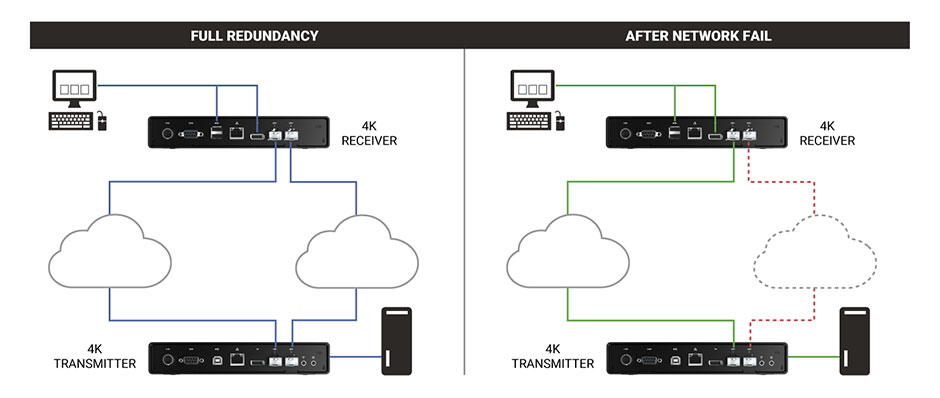

Application diagram: Emerald KVM transmitters and receivers providing redundant network paths in case of failure.

Virtual Machine Connectivity

Virtual Machine Connectivity

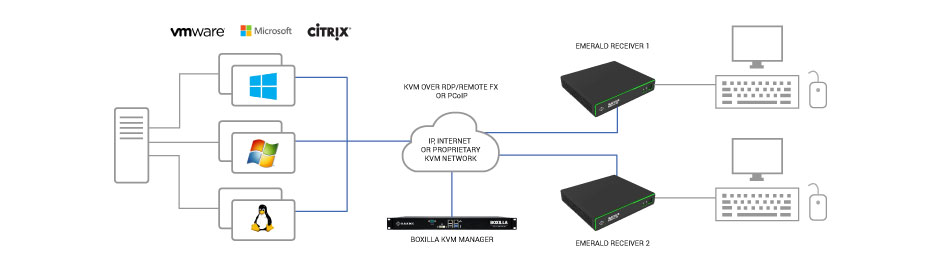

Application diagram: Remote, high-speed access to virtual machines, supporting Vmware®, Microsoft® and Citrix®.

EN_ApplicationDiagram_Emerald_Remote_App

Emerald Remote App

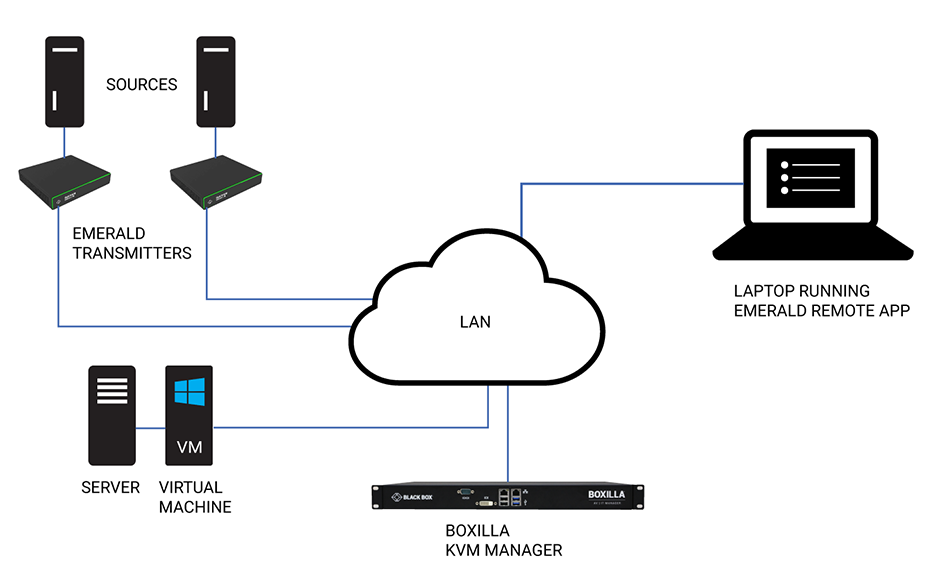

Application diagram: Emerald Remote App installed on a laptop connected to Emerald Transmitters and a virtual machine via Boxilla.

Emerald Product Comparison

Feature Emerald 4K Emerald DESKVUE Emerald PE Emerald SE Emerald ZeroU TX Emerald Remote App
Max Video Resolution 4096 x 2160 at 60Hz (DisplayPort 1.2) 5120 x 1440 at 60 Hz (DP 1.2/HDMI 2.0) Quad Monitor 1920 x 1200 at 60 Hz (DVI [TX and RX], DisplayPort [TX only]) SE/PE: Single or Dual Monitor 1920 x 1200 at 60Hz
Video Quality Pixel perfect Visually lossless High quality ~35fps
Dual Network Ports Yes, (2) SFP+ Yes, (2) CATx Yes, (1) SFP, (1) CATx No, (1) CATx -
Peripheral Support All USB 2.0 devices USB 3.2, USB 2.0 All USB 2.0 devices USB HID only
VM Support PCoIP, RDP/RemoteFX *Supports PCoIP with EMD3000GE. PCoIP, RDP/RemoteFX *Supports PCoIP with EMD3000GE. RDP/RemoteFX RDP/RemoteFX - RDP/RemoteFX
Bidirectional Analog Stereo Audio (Speaker only) (Speaker only)
System Scalability Point-to-point extension up to unlimited KVM matrix

Emerald Product Portfolio

Emerald Remote App for Microsoft Windows® 10/11

The Emerald Remote App is a new KVM software receiver that enables remote computer access to both physical and virtual machines from any Windows 10 device. The Remote App increases mobility, device access and monitoring on your Emerald System and delivers a full HD video desktop experience up to 40 fps from multiple connections that can be launched simultaneously. This facilitates device management and access to your Emerald KVM network from anywhere you want.

  • Supports HD video up to 1920 x 1200 and provides access to both physical and virtual machines over an IP network or WAN connections
  • Open connections to multiple devices simultaneously
  • Licence-based access authenticated by the Boxilla® KVM Network Manager in real time, ensuring the Emerald administrator has full control (view licence options)


ORDER FREE 30-DAY TRIAL LICENCE (1)

(1) Boxilla KVM Manager is required for demo purposes
