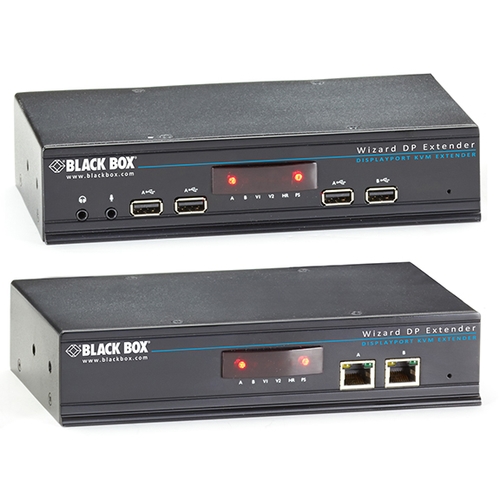

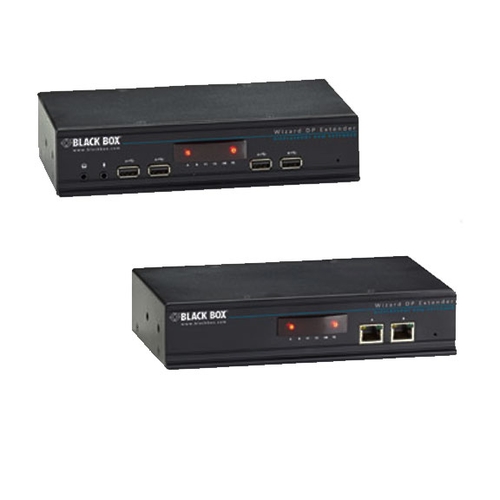

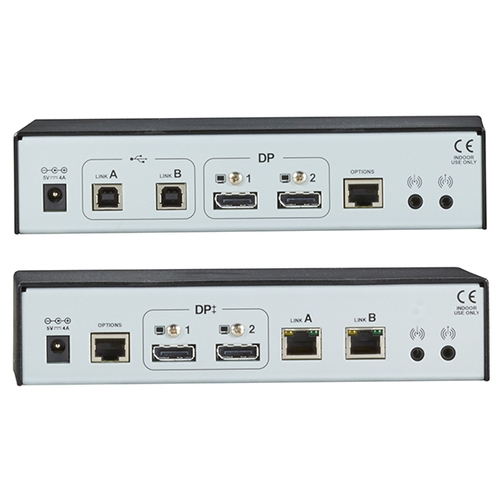

KVM Single/Dual-Head CATx Extender – DisplayPort
Photo may vary from actual product
KVM Single/Dual-Head CATx Extender – DisplayPort
ACU5800A: DisplayPort, USB 2.0, Audio


KVM Single/Dual-Head CATx Extender – DisplayPort


High-resolution DisplayPort KVM extender with USB 2.0.


  • Enables you to locate your critical computing hardware in a secure environment.
  • Extend the user workstation away from the CPU, while maintaining the user desktop experience.
  • Plug-and-play.
  • Extension distance is up to 150 m for a single 1920 x 1080 screen, depending on cable type.
  • Extension distance is 100 m for two 1920 x 1200 screens, or a single high resolution screen to 4k (3840 x 2160).
  • Supports Mac Cinema Display (2560 x 1440).
  • USB 2.0 Hi-Speed for mass storage devices
  • Supports keyboard, mouse, tablet, and touchscreens.
  • S/PDIF, and analog audio
  • Can also support 1920x1080 @ 120Hz when using a single video channel.
  • Uncompressed system.
  • Receiver supports DisplayPort Dual Mode, which allows monitors that only support HDMI or DVI to be used.
  • Enables connection of any USB human interface device from mice and keyboards through to graphics, tablets, and more.
  • Includes intelligent EDID management.
  • Digital audio.
  • HD quality analog audio.

Share |
  Product       Code
DisplayPort

USB 2.0, Audio
  KVM Single/Dual-Head CATx Extender – DisplayPort
KVM Single/Dual-Head CATx Extender – DisplayPort
  ACU5800A
Complete Extender Kit with Transmitter and Receiver

Accessories

  Product     Code

  USB 2.0 Cable - Type A/Type B, M/M, 1.8m
USB 2.0 Cable
  USB05-0006
Rack/Mount Kit
  19" Rackmounting Kit 1U for Single Unit
19" Rackmounting Kit 1U for Single Unit
  RMK2004
  DisplayPort Cable - 1.8m
DisplayPort Cable
  VCB-DP-0006-MM
Power Supply
  Replacement Power Supply esp. for Dual-Head and Quad-Head Models
Replacement Power Supply esp. for Dual-Head and Quad-Head Models
  PS650



Actions
Datasheets
KVM Single/Dual-Head CATx Extender – DisplayPort Datasheet
Manuals
KVM Single/Dual-Head CATx Extender – DisplayPort Manual
