Store home > KVM Switches and Extenders > KVM Extenders > DVI KVM Extenders > CATx > Wizard SRX Extender – DVI, USB 2.0, Audio
ACU5501A-R4: Extender Kit, (1) SingleLink DVI-D, USB transparent, Audio
Photo may vary from actual product
ACU5502A-R3: Extender Kit, (2) SingleLink DVI-D, USB transparent, Audio
ACU5502A-R3: Extender Kit, (2) SingleLink DVI-D, USB transparent, Audio
ACU5520A: Extender Kit, (1) DualLink DVI-D, USB transparent, Audio
ACU5520A: Extender Kit, (1) DualLink DVI-D, USB transparent, Audio

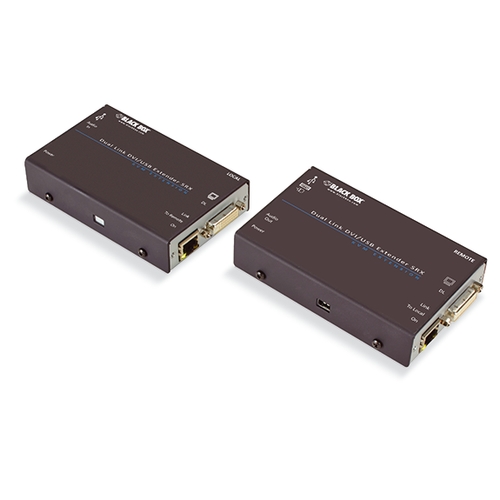

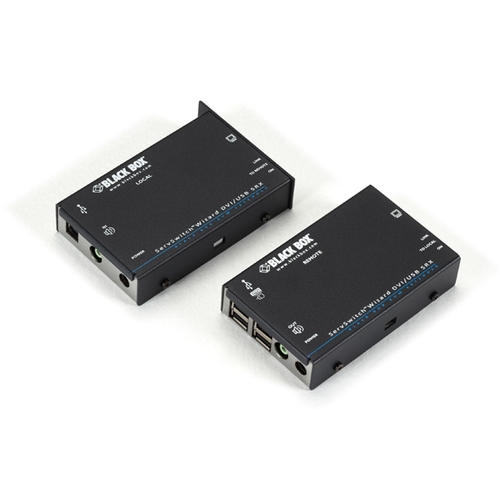

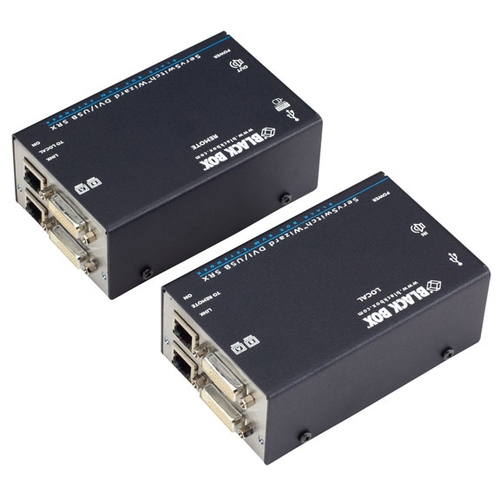

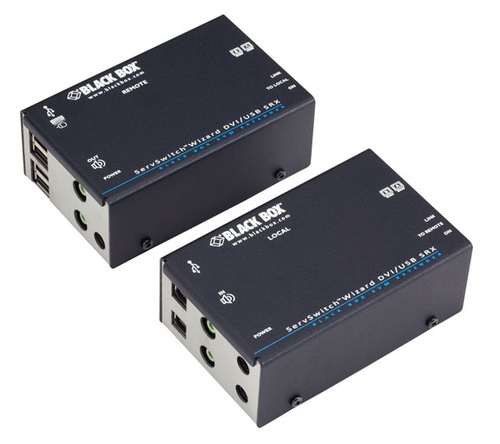

Wizard SRX Extender – DVI, USB 2.0, Audio


Single-or Dual-Link DVI-D, transparent USB, and audio extension up to 50m over a single shielded CAT6/7 cable in high density applications.


  • Full resolution range up to 1080p/1920 x 1200 for Single-Link DVI-D and 2560 x 1600 for Dual Link DVI-D.
  • No compression, no delay of video data makes it ideal for video editing and simulation.
  • Distance up to 50m with full resolution.

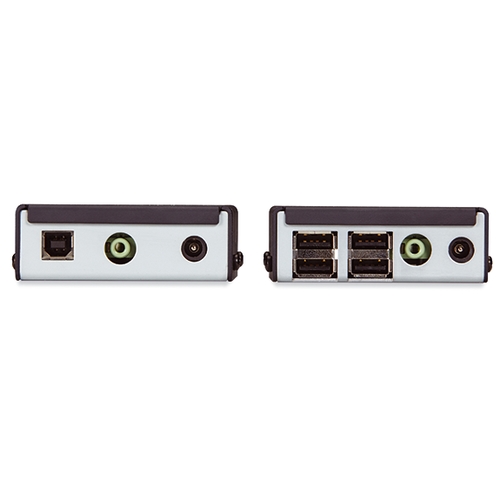

  • Remote unit features 4-port USB hub to attach USB HID and USB 2.0 devices.
  • Transparent USB support up to 12 Mbps for isochronous devices, such as mass storage, touchscreens and tablets.
  • Analogue and embedded digital audio support.
  • 256 byte EDID read and store for best plug-and-play functionality.
  • Choose between one or two Single-Link and one Dual-Link DVI-D channel.

Share |
  Product       Code
Extender Kit
(1) SingleLink DVI-D

USB transparent, Audio
  Wizard SRX Single Link DVI Extender USB Audio
Wizard SRX Single Link DVI Extender USB Audio
  ACU5501A-R4
(2) SingleLink DVI-D

USB transparent, Audio
  Wizard SRX Dual Head DVI Extender USB Audio
Wizard SRX Dual Head DVI Extender USB Audio
  ACU5502A-R3
(1) DualLink DVI-D

USB transparent, Audio
  Wizard SRX Dual Link DVI Extender USB Audio
Wizard SRX Dual Link DVI Extender USB Audio
  ACU5520A
Extender comes as a complete kit with transmitter and receiver.

Accessories

  Product     Code

  IEC Power Supply - 5 VDC, 2.5 A, Switched
IEC Power Supply
  PS649-R3
Rack/Mount Kit

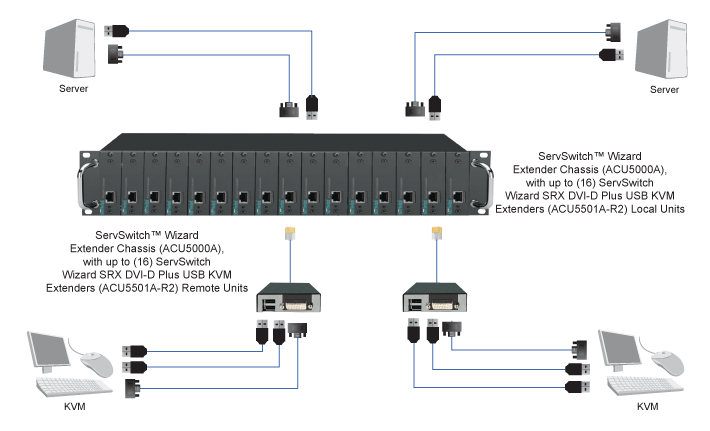

  19" Rack Kit for up to 16 units
19" Rack Kit for up to 16 units
  ACU5000A
  Mounting Plate for Single Video Units
Mounting Plate for Single Video Units
  ACU5051-1S
  Mounting Plate for Dual Video Units
Mounting Plate for Dual Video Units
  ACU5052-2S
Power Supply
  Rackmount Power Supply for 4 single or 2 dual head modules within ACU5000A
Rackmount Power Supply for 4 single or 2 dual head modules  within ACU5000A
  PS5000-R2
  CAT5e F/UTP KVM Extender Link cable - 30m
CAT5e F/UTP KVM Extender Link cable
  EYNG3110A-030M
  CAT5e F/UTP KVM Extender Link cable - 35m
CAT5e F/UTP KVM Extender Link cable
  EYNG3110A-035M
  CAT5e F/UTP KVM Extender Link cable - 40m
CAT5e F/UTP KVM Extender Link cable
  EYNG3110A-040M
  CAT5e F/UTP KVM Extender Link cable - 50m
CAT5e F/UTP KVM Extender Link cable
  EYNG3110A-050M
  Wizard Multi-Head DL DVI KVM Switch, 4-Port - USB HID, 4 port, Single DVI/VGA
Wizard Multi-Head DL DVI KVM Switch, 4-Port
  KV2004A
  Wizard Multi-Head DL DVI KVM Switch, 4-Port - USB HID, 4 port, Dual DVI/VGA
Wizard Multi-Head DL DVI KVM Switch, 4-Port
  KV2204A
  ServSwitch Wizard DVI DL USB - USB HID, 8 port, (1) DualLink DVI-D
ServSwitch Wizard DVI DL USB
  KV2008A
